Theft in the Xbox Scene - Part 2

Jul 12, 2025. | By: Dustin

Introduction

This is a continuation of Theft in the Xbox Scene - Part 1, where I began documenting some of the challenges and setbacks we’ve faced as a result of ongoing IP theft and misinformation.

Unresolve Issues

There’s been a lot of confusion about the core issue raised in the original post. To be clear, it’s the theft of our software. That was the first and most important part of the article to be written. Everything else was added to provide background and context; but unfortunately, that also introduced a lot of noise into the conversation.

Despite the attention the post received, very little has been done to address these concerns. The key issues remain unresolved.

Unresolved

• Theft of XboxHD+ logic
• Theft of HDD unlocking (key recovery) logic
• Theft of CPU upgrade support logic

I also believe the In-Game Reset (IGR) logic copied from rmenhal’s GPL-licensed work deserves more attention within the community. However, since this isn’t my code and we don’t use it, we’re not pursuing it ourselves.

Partially Addressed

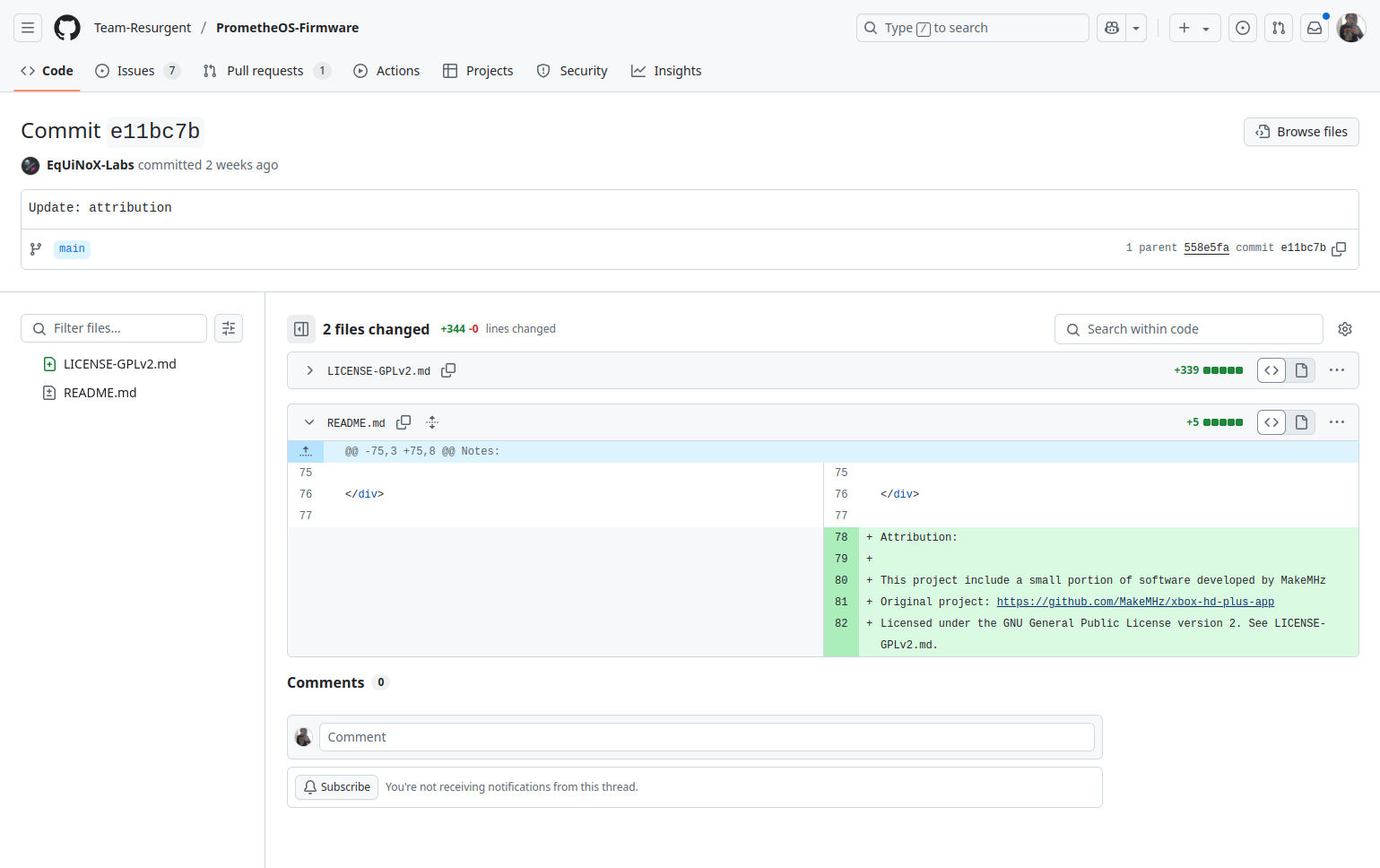

PrometheOS has taken responsibility for incorporating XboxHD+ code. However, the issue remains unresolved, as the license terms are still not being followed. A formal request will be submitted to address this.

Since PrometheOS is built and distributed using Cerbios, we also believe the underlying Cerbios-related issues need to be addressed as part of that resolution.

DMCA

Over the past year, we have made multiple attempts to address the unauthorized distribution of XboxHD+ files on xbins. This has included outreach from others in the retro community, but so far, those efforts have not led to a resolution.

A DMCA notice was submitted to GitHub for Pandora, a tool built specifically to download files from xbins. Most of these files are not legally available through any other means. To clarify, our concern lies only with the distribution of our works without permission. If members of the Cerbios and PrometheOS teams have contacts at xbins, we hope they will step in to help resolve the issue.

We have also submitted DMCA notices to online stores selling products that include or enable unauthorized use of our protected works. This includes hardware specifically designed to circumvent the XboxHD+, such as boards marketed with phrases like “just find the firmware,” as well as, in one case, an OpenXenium product explicitly sold with Cerbios and PrometheOS preloaded.

In the case of Cerbios and PrometheOS listings, we have stepped back from issuing further notices for now. We hope the teams behind those projects will take responsibility and work to resolve the issue themselves instead of leaving the burden entirely on third-party sellers.

Theft of HDD Unlocking (Key Recovery) Logic

There has been a lot of confusion surrounding what was stolen and why it matters. To clarify: drive unlocking and drive unlocking via key recovery are two very different processes.

Drive unlocking through vendor commands is often a fallback method for manufacturers. It allows access to drives that are locked but without recovering the original key. In contrast, drive unlocking via key recovery uses a diagnostic interface to run custom payloads that extracts the drive’s unique key directly from its controller.

The Seagate U5 is a perfect example of why key recovery is not straightforward. There is no predefined command to ask the drive for its key. Unlocking it requires a custom payload, executed through an undocumented diagnostic interface, to force the controller to execute code fromo a specific location in memory that places the hardware in just the right state for the key to remain accessible and not cleared from memory.

I reached out to EqUiNoX for clarification on how their implementation works but have not received a clear response.

The initial list of resources they shared includes:

• Documents covering TTY-based unlocking with and without key recovery
• References to drives with completely different architectures
• One closed-source program, which I have not been able to confirme to support key recovery on original Xbox drives.

The Elephant in the Room

A common challenge with publishing technical write-ups is having to respond to made-up accusations. I want to address one of them directly because it containts a direct quote from EqUiNoX of Team Resurgent.

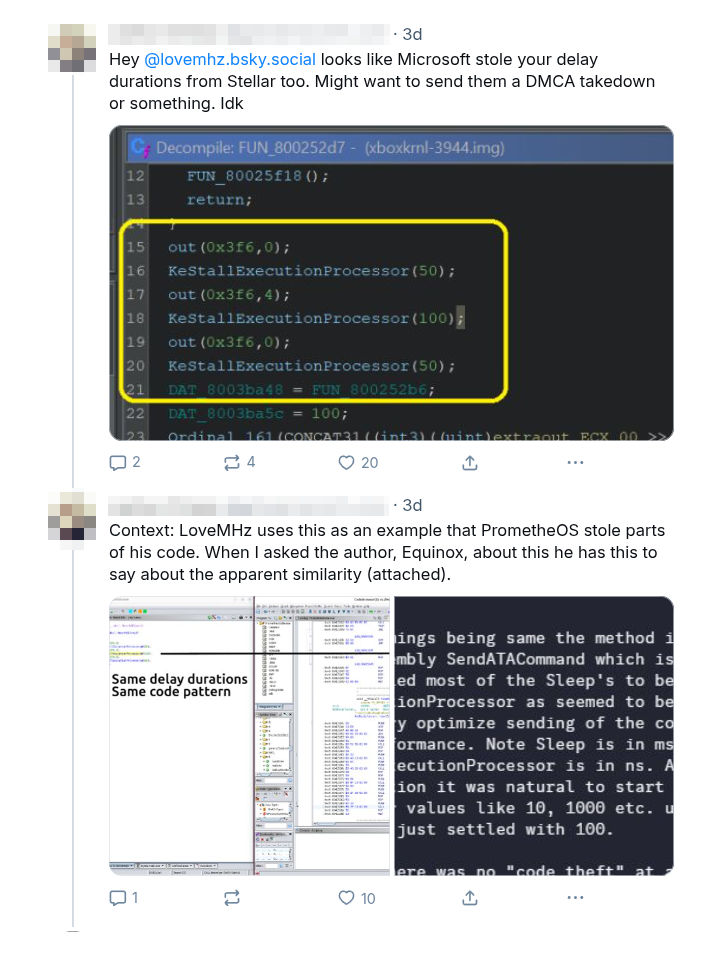

On July 8th I was tagged in a post on Bluesky claiming that one of the many samples we provided was a direct copy of Microsoft code.

Not only is this incorrect, but the cropped screenshot being circulated is misleading. It omits surrounding context that differentiates our implementation from Microsoft’s. This kind of selective framing only fuels misinformation.

I addressed this on the OGXbox forums.

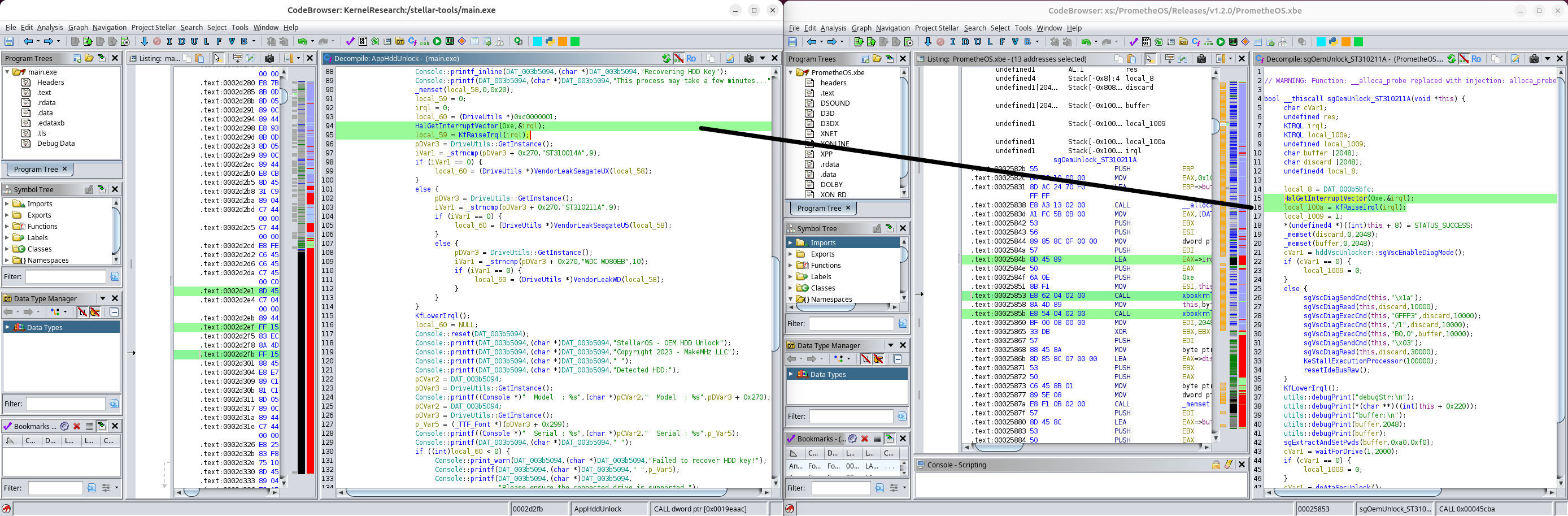

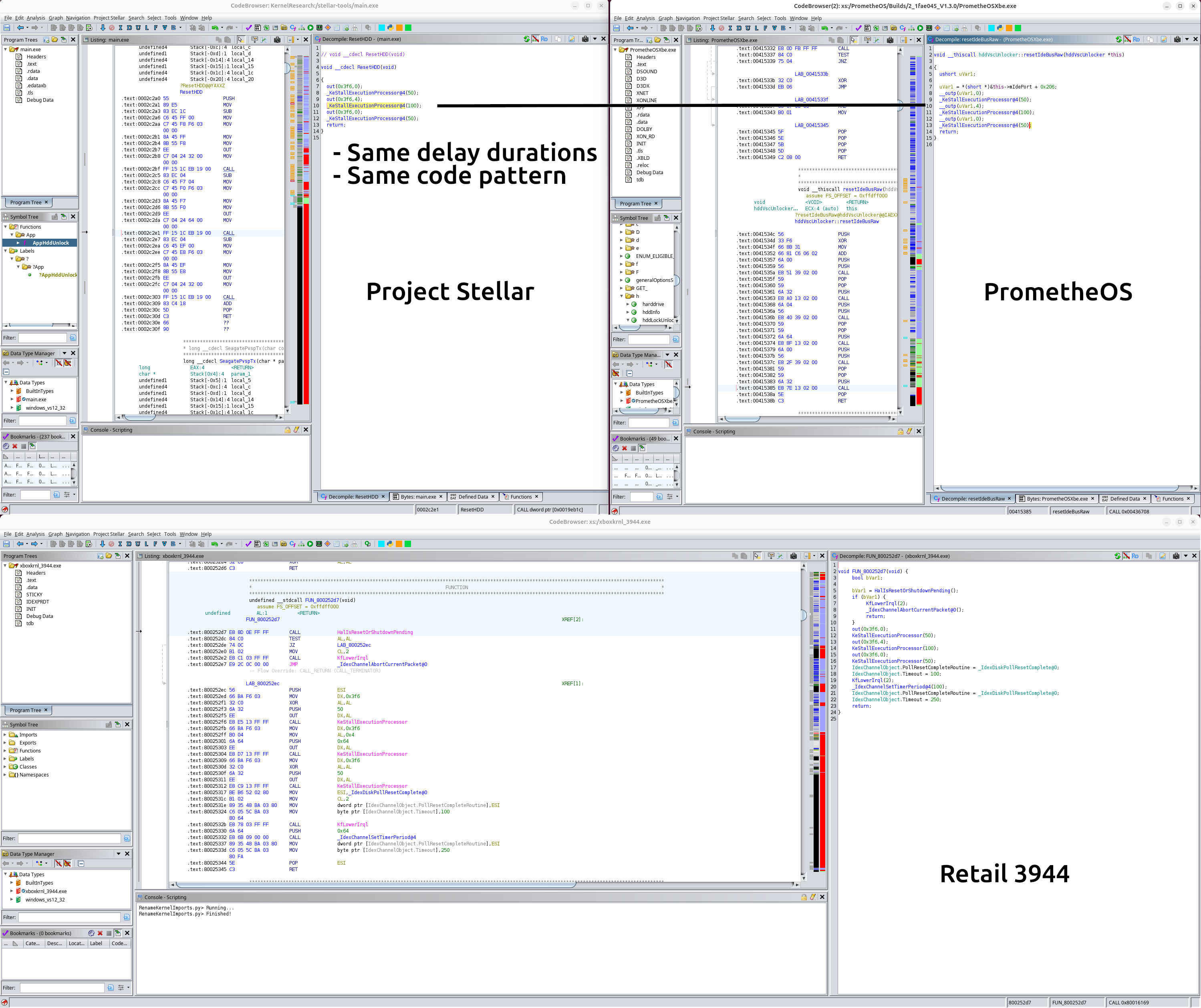

Below is the full section in question without the crop. I’ve added labels to make it clear which code is Project Stellar, PrometheOS, and the same retail Xbox kernel. This is not “leaked source code” or anything like that. It’s the exact same kernel as the one in the BlueSky post. It’s the Retail 3944 kernel with the SHA1SUM of 67054fc88bda94e33e86f1b19be60efec0724fb6 for the full 1MB backup.

This is from the same retail kernel as the cropped screenshot and was decompiled using Ghidra with default settings. Kernel exports were renamed using RenameKernelImports.py, generated from the XboxDev wiki infromation on the kernel exports, and type information was applied from nxdk.

The original code in question is a polling routine used to ensure the drive resets. It does not match Project Stellar. We included it in our list of samples because it exists outside of the kernel and the pattern lifted from Project Stellar into PrometheOS is still clear. The timings also still matter. If the surrounding logic changes, the delays could change too or be optimized away if that was the goal.

To be absolutely clear, I am are not claiming ownership over basic I/O instructions like out or standard functions like KeStallExecutionProcessor(). That would be like claiming ownership over if() statements.

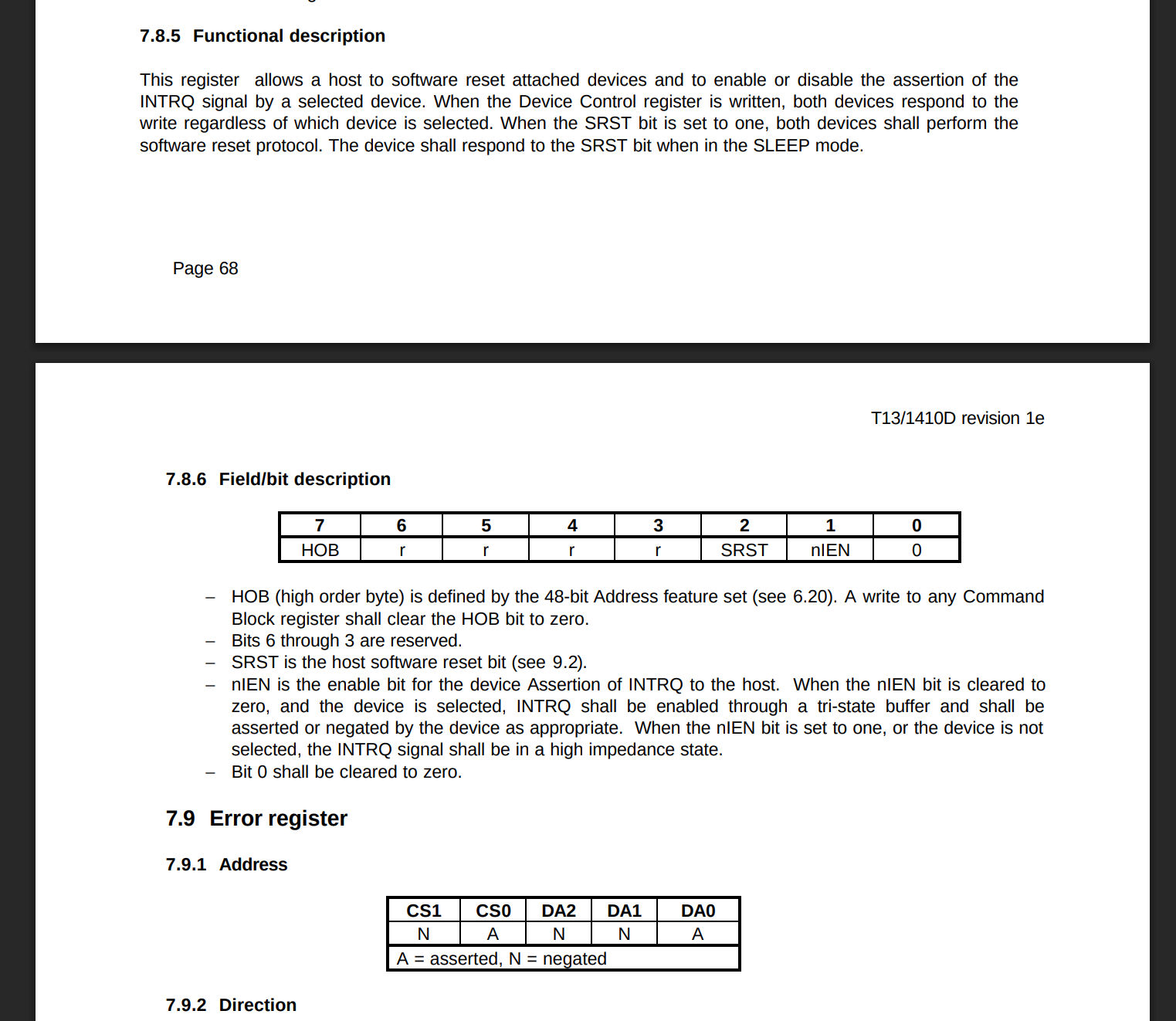

Our implementation is based on the ATA/ATAPI specification, as shown below from the Information Technology - AT Attachment with Packet Interface - 6 (ATA/ATAPI-6) datasheet.

The timing values used in our implementation apply a multiplier to account for bus delays and timer resolution differences. These timers are based on the onboard crystal, and ownership of the bus from the CPU through the northbrige and to the southbridge must be queued. While the timings are not exact, our values were tested extensively to ensure stability.

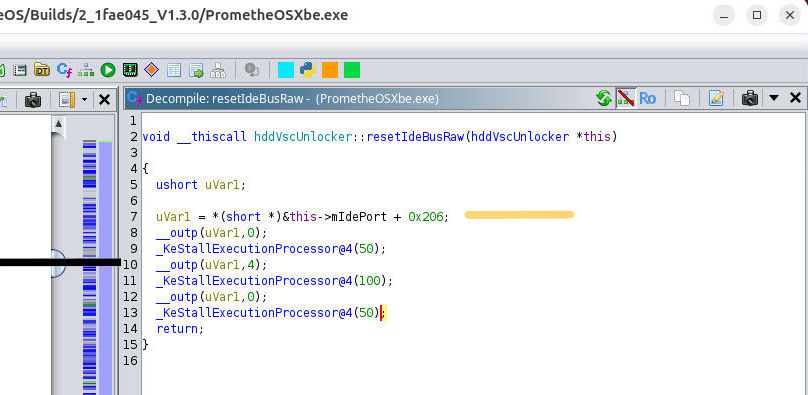

But you might ask, “The PrometheOS code uses a variable to store mIdePort. Isn’t that obviously different from either implementation?”

And to that I would say this shows a basic misunderstanding of how the Xbox works. If this had actually been reverse engineered from the Xbox kernel, that variable would not exist. The Xbox has only a single IDE controller, and it is always mapped to a fixed I/O address. Anyone doing even basic reverse engineering would know this. In fact, just looking at the motherboard would make it clear that it only has one IDE controller because it only has one IDE port.

If your concern is “optimizations,” then that’s a free one. Because as it stands, mIdePort, does nothing but make it one line of code different from Stellar.

Team Resurgent’s Response

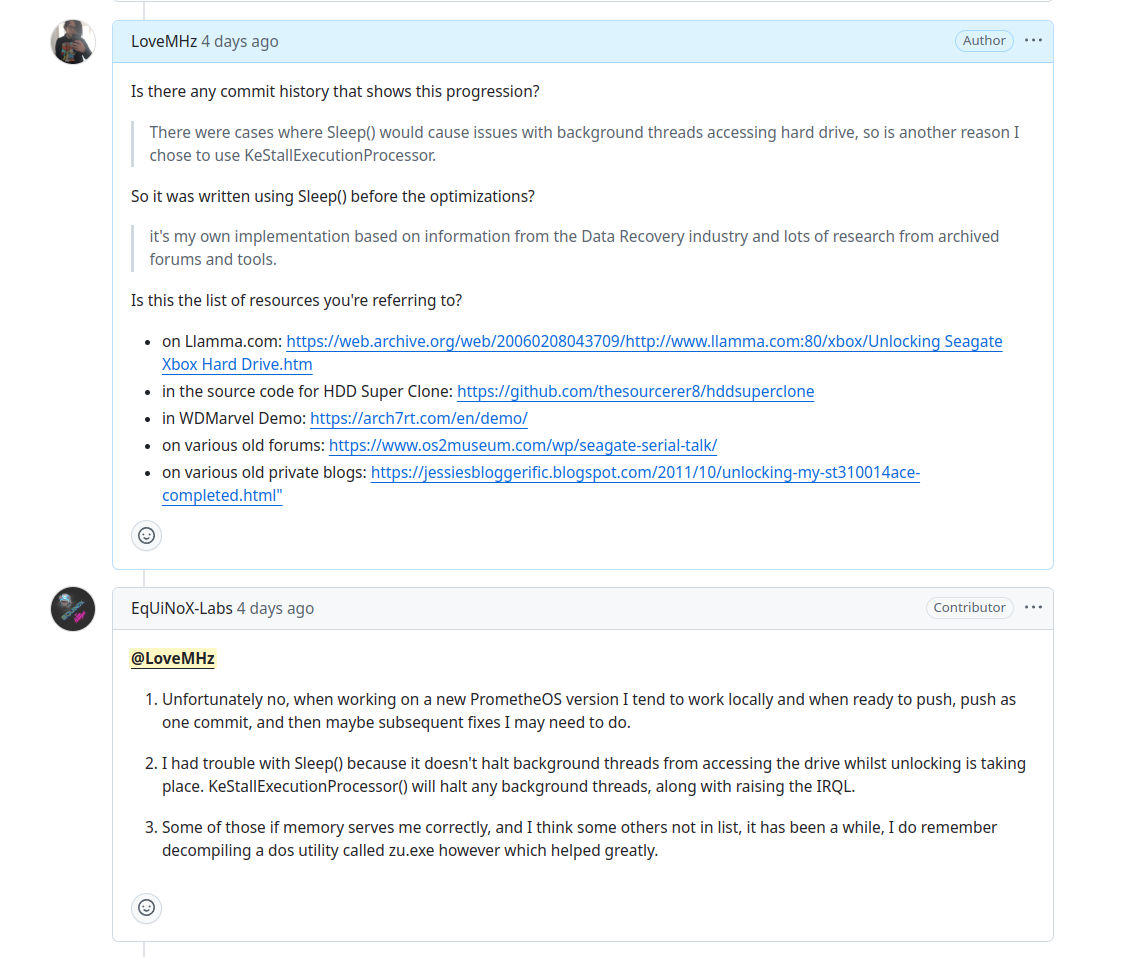

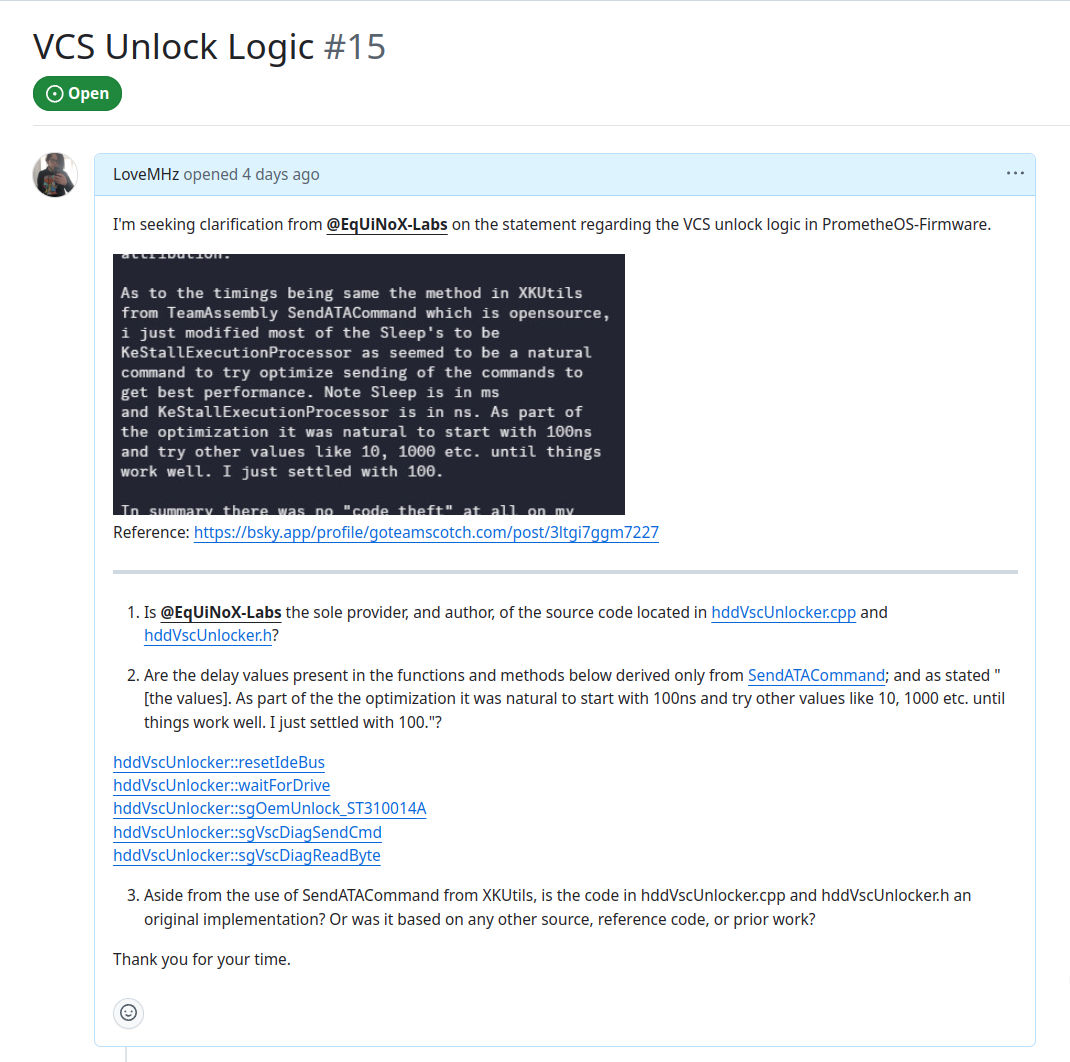

After publishing the first article, I opened a GitHub issue on the PrometheOS repository to seek clarification on the HDD unlocking logic. The goal was to ask direct, technical questions about the origins of the code and the development process behind it.

The responses from EqUiNoX were appreciated, and I want to be clear that I gave every opportunity for clarification. I asked specific questions, followed up where needed, and allowed their words to speak for themselves.

However, several of the responses raised new questions, revealed inconsistencies, or introduced claims that will need to be addressed in more detail. For now, I want to provide a summary of what was said and what is still unclear. I will expand on these concerns later in the article.

Response #1

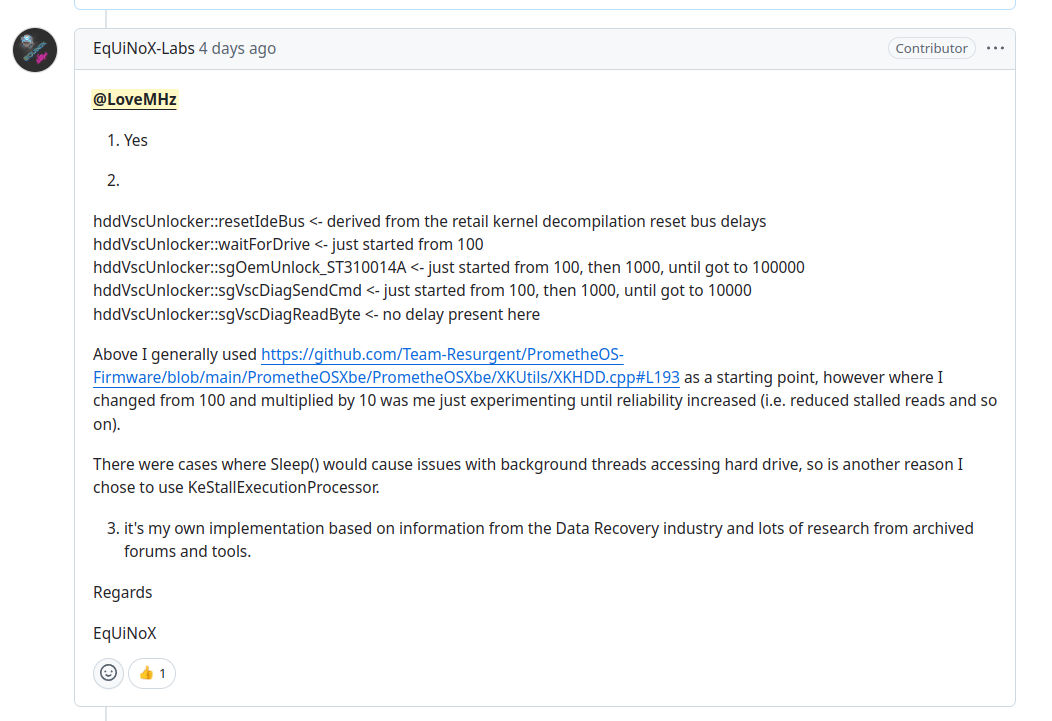

I find the statement hddVscUnlocker::resetIdeBus <- derived from the retail kernel decompilation reset bus delays questionable. PrometheOS requires Cerbios to execute from a modchip, and both projects have worked together publicly in the past. This is important context, because Cerbios is compiled from leaked Xbox source code.

In the implementation of resetIdeBus, the oddity of using mIdePort has already been addressed above. As for the claims regarding how the remaining timing values were derived, there would need to be actual testing to validate that assertion.

The most significant red flag is the statement about Sleep() that it causes issues with background threads accessing hard drive, and that this is why KeStallExecutionProcessor() was chosen. This is simply not how the Xbox works. The Xbox uses preemptive multitasking, meaning it constantly and rapidly switches between threads.

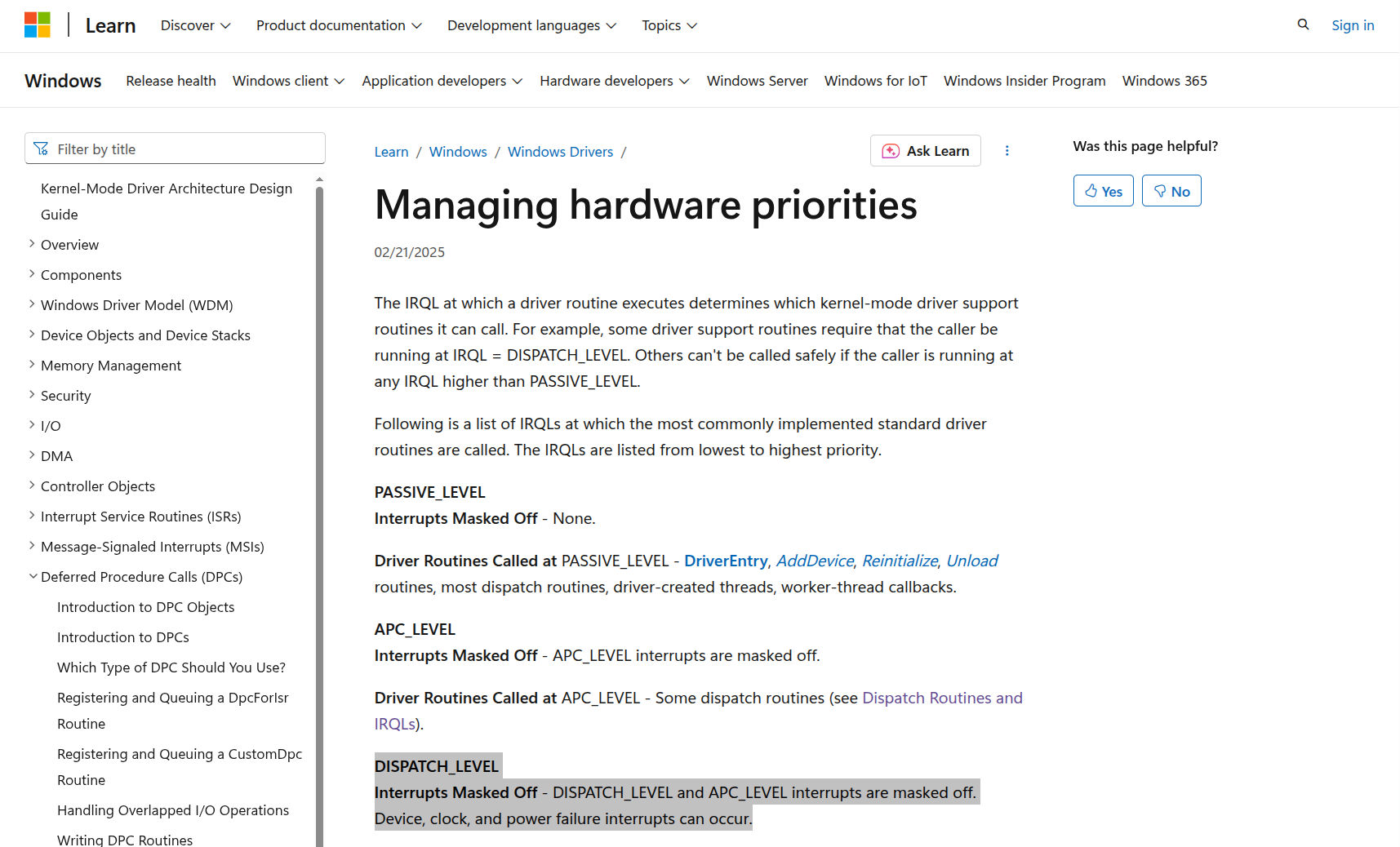

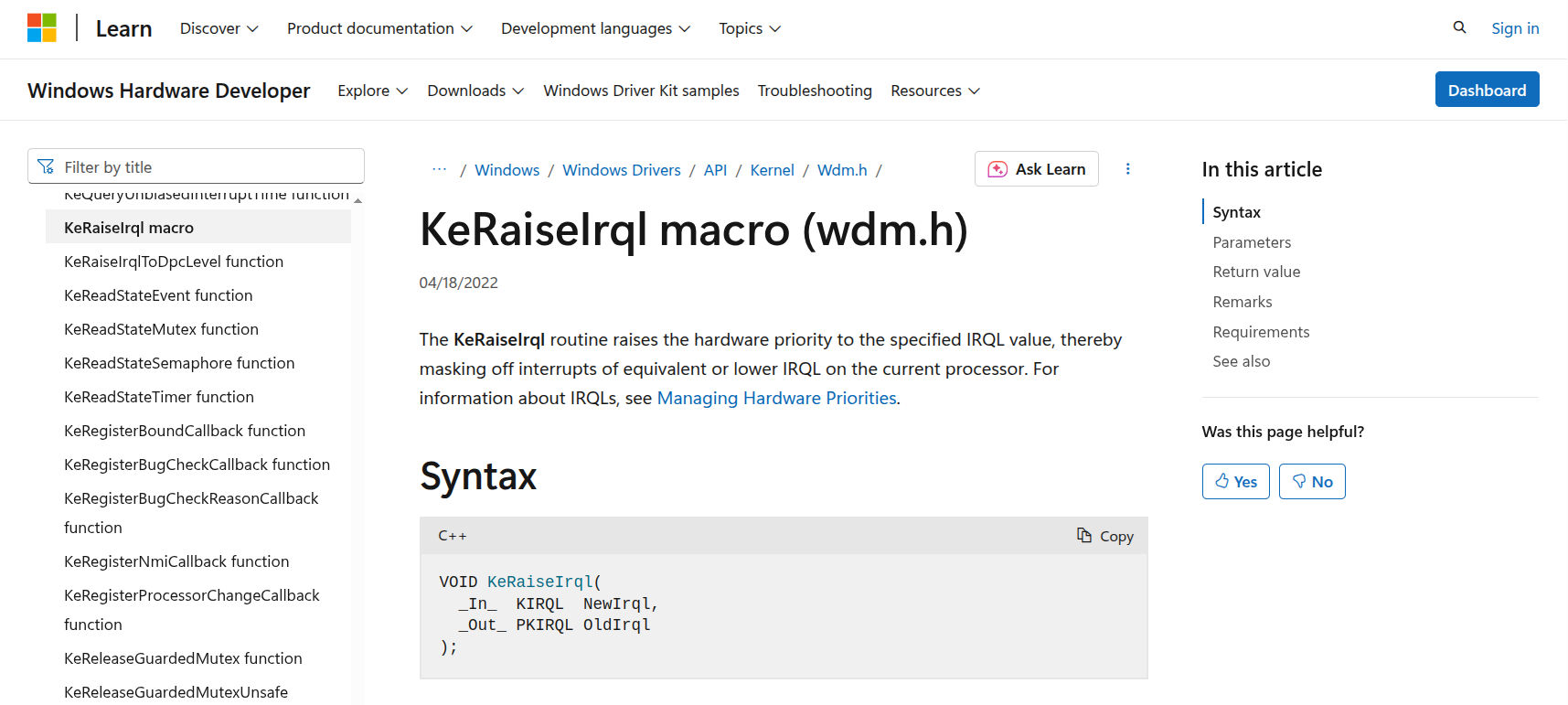

To prevent other threads from accessing the drive, the correct behavior is to raise the interrupt request level (IRQL) to DISPATCH_LEVEL or higher to block thread switching via KeRaiseIrqlToDpcLevel.

But PrometheOS doesn’t do this. Instead, it copies Stellar’s exact logic: raising the IRQL to the interrupt level of the IDE controller by calling HalGetInterruptVector and KfRaiseIrql. And this isn’t the only way to achieve this.

The only difference here being that IRQL is raised by the caller via callee. ie PrometheOS moved the KeRaiseIrqlToDpcLevel call from outside the drive functions to right inside them.

This is not for blocking other threads. It’s for blocking kernel responses to IDE controller interrupts.

This undermines the explanation that it was done for optimization. I don’t belive this is a misunderstanding on my part. It reads more like an excuse layered over copied logic.

---

To drive this home… Something I noticed while putting this article together, and honestly found a bit funny, is this line in the PrometheOS 1.3.0 source release:

HalGetInterruptVector(0xe, &irql); // 0xe = PNPISABus

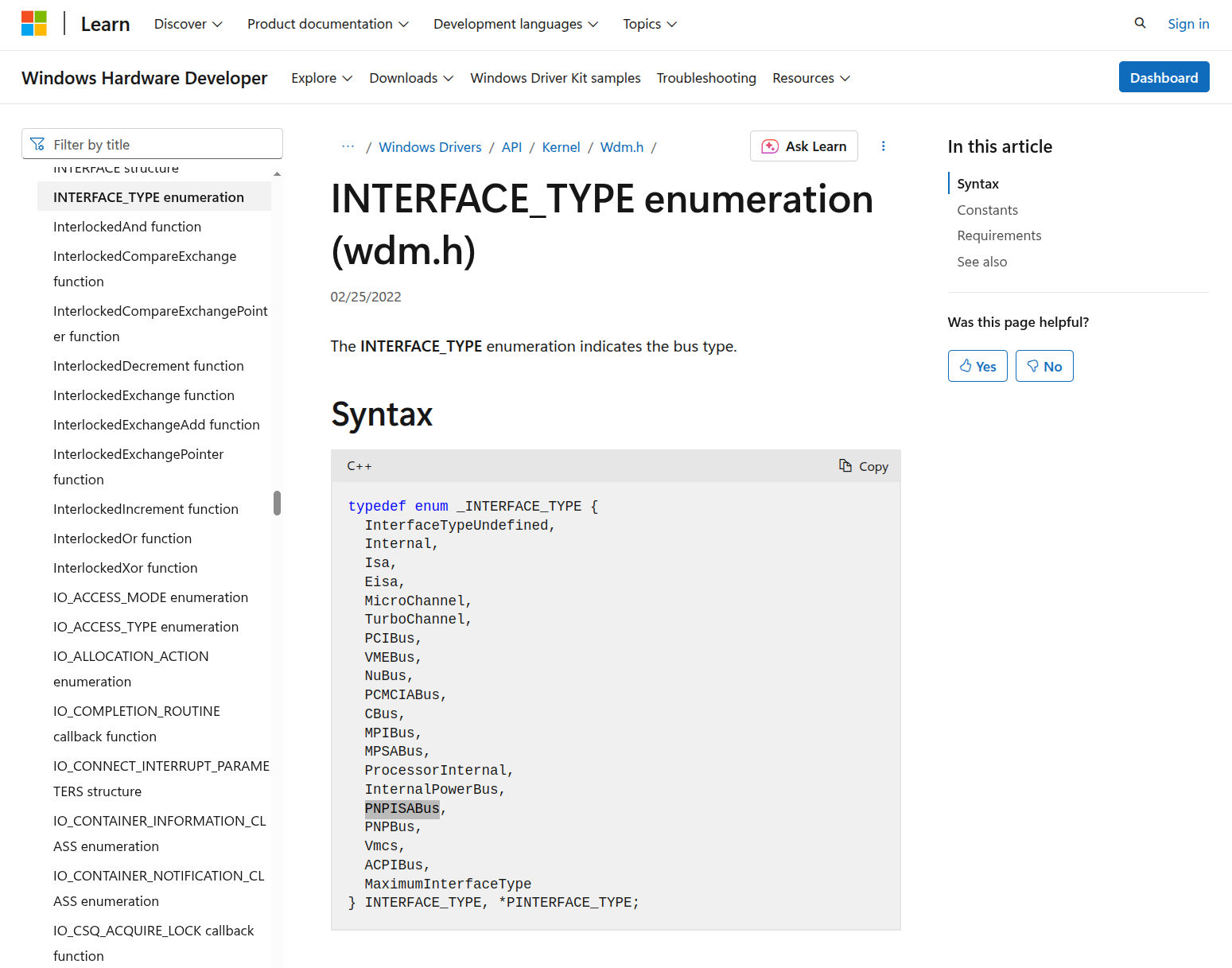

The value 0xe is the same value as the interrupt for the IDE controller, but the comment is completely incorrect. PNPISABus is a constant from the INTERFACE_TYPE enum used to describe how devices identify themselves to the system, such as PCI or ISA. It is not related to interrupt levels in this context.

This is without a doubt a case of someone not understanding what the code is doing. The comment was likely added to make sense of a value they copied without knowing what it actually represented. It brings everything full circle.

Response #2

Lack of Source Code

Unfortunately no, when working on a new PrometheOS version I tend to work locally and when ready to push, push as one commit...

This development approach is incompatible with open-source license requirements, especially for any project that uses GPL-licensed code. The GPL requires that the complete source code be made available for all distributed versions. That includes any intermediary versions that were released as binaries, such as v1.2.0 of PrometheOS. Failing to retain or provide this source code is a direct violation of the license.

This is not a small or technical oversight. It is a license breach that affects the legality of distributing the software itself. If you distribute a binary, you are also required to provide the full corresponding source to that binary. There is no exception for working locally or pushing code in one large commit. By not maintaining source control in a transparent and trackable way, the project undermines the trust that open-source licensing is built on.

What makes the situation worse is that PrometheOS includes code taken from XboxHD+, which is also released under the GPL. When that code is reused, modified, or redistributed, the GPL still applies. The license terms are not optional or negotiable.

PrometheOS is distributing binaries that contain our GPL-licensed code, yet it fails to:

• Provide the complete source code for the versions being distributed
• Properly attribute the original work
• Grant the same rights to others to inspect, modify, and redistribute under the same terms

This is not theoretical. These are the exact obligations outlined in GPLv2, sections 1 and 3.

If this were simply a misunderstanding, it could have been addressed by releasing the required source for v1.2.0. Instead, the jump from v1.2.0 to v1.3.0 includes binary changes that appear deliberately obfuscated, making it harder to identify what was changed and why. The only changelog entry provided was “Improved: VSC HDD Unlocking Times,” yet the code changes go far beyond timing adjustments and raise serious questions about intent.

Sleep() and KeStallExecutionProcessor()

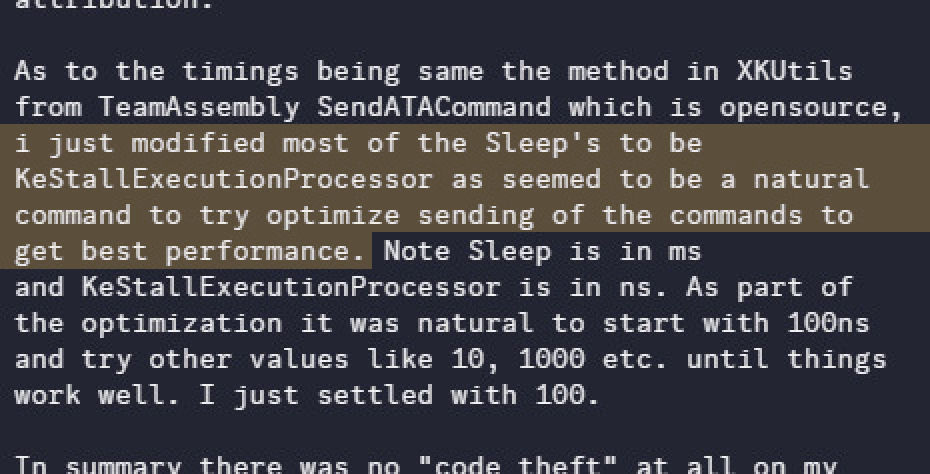

I had trouble with Sleep() because it doesn't halt background threads from accessing the drive whilst unlocking is taking place. KeStallExecutionProcessor() will halt any background threads, along with raising the IRQL.

This is not true and is covered above. KeStallExecutionProcessor() has no impact on running threads and does not read, write, or modifiy the IRQ level in any way.

Research Notes

I do remember decompiling a dos utility called zu.exe however which helped greatly.

Earlier in this article, I covered the topic of HDD Unlocking (Key Recovery) and the confusion surrounding the type of proof being requested. That context is important here, because the list of “prior research” provided in defense of the PrometheOS implementation largely references TTY-based unlocking methods or closed-source software that either does not support key recovery or does not apply to the drives in question.

One new reference introduced in this discussion was zu.exe. I had not encountered this tool before, so I asked for clarification on exactly which drives it can unlock and whether the screenshot provided was showing key recovery in action.

These details matter because the architecture of these drives varies significantly, and claiming to have “extrapolated” key recovery from closed software, without documentation or code, raises serious questions.

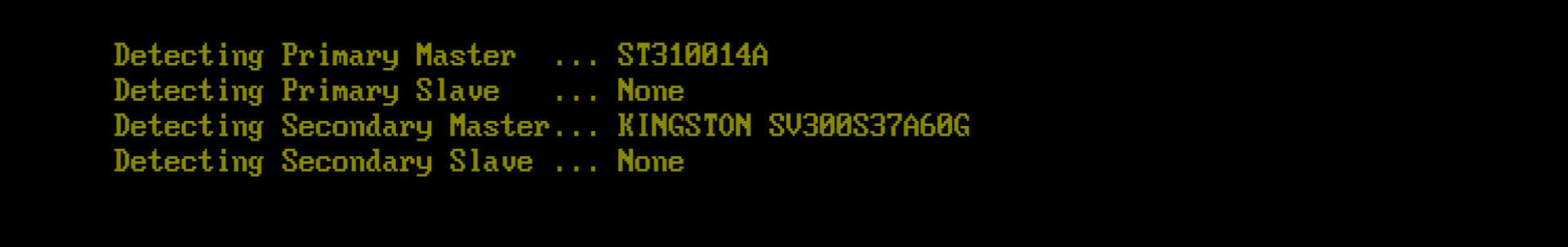

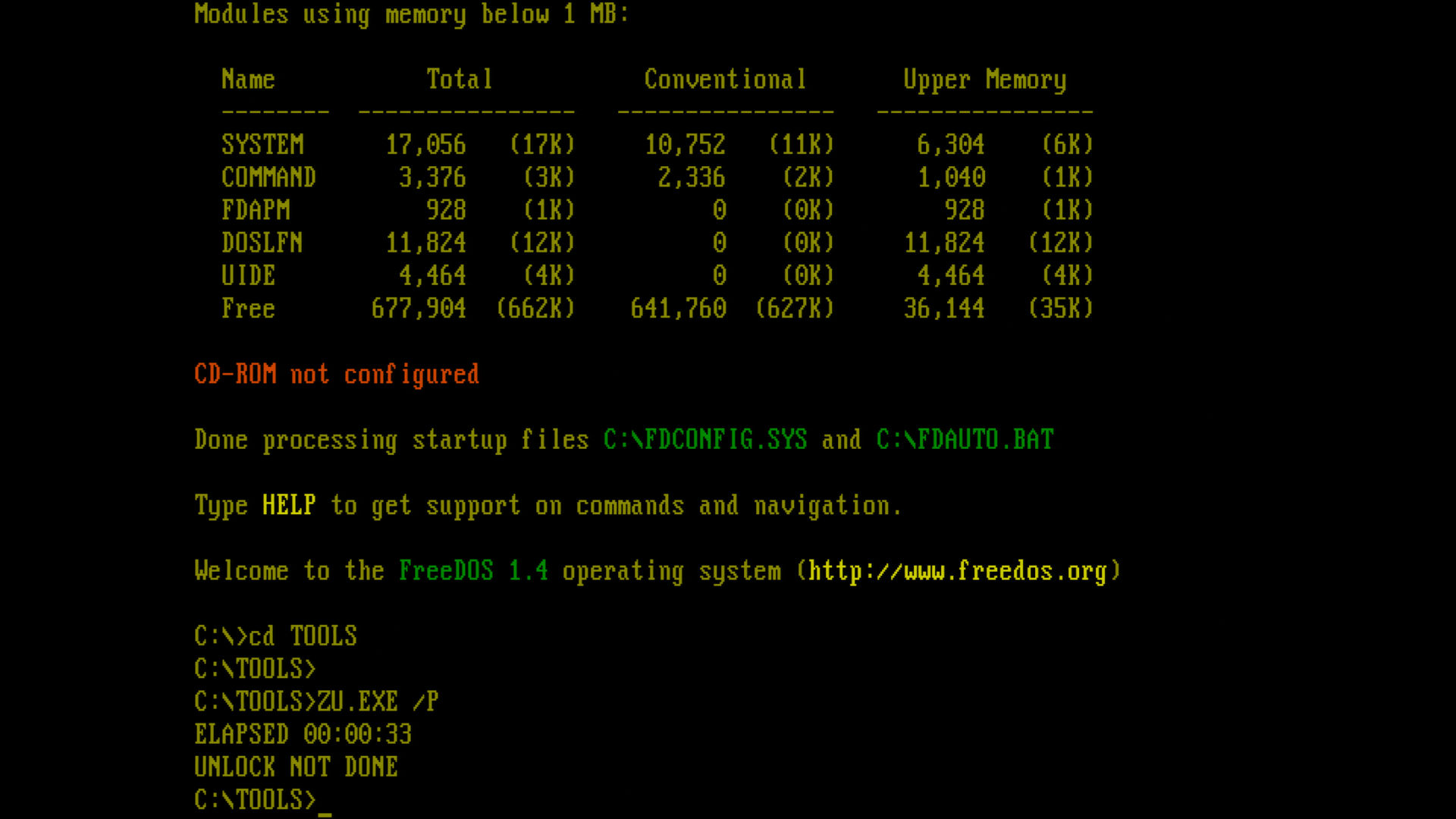

Still, I tested the theory in good faith. I used an Intel P4 system and a motherboard built with the exact same chipset used in the Xbox, but was unable to reproduce the result.

Response #3…

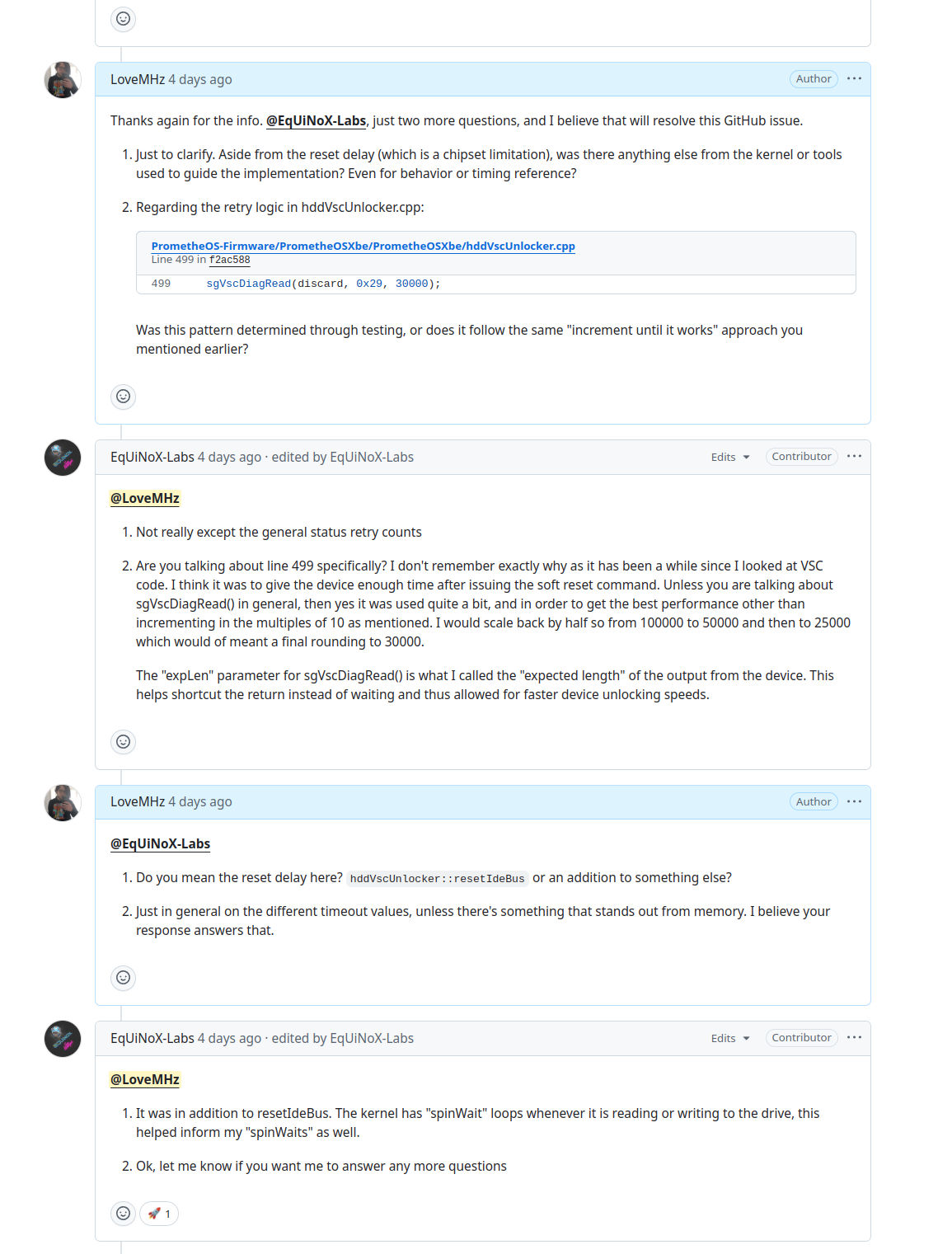

This was one of the last meaningful replies in the GitHub conversation, and it left several questions unanswered.

Obfuscations in the v1.3.0 Source Release

PrometheOS is currently hiding behind the 1.2.0 source release, but after comparing the 1.2.0 binary to the 1.3.0 release over the past few days, I’ve identified even more undeniable examples of copied code. In this case, the changes appear to have been made specifically to conceal the theft.

The release notes for version 1.3.0 only mention one related change:

Improved: VSC HDD Unlocking Times

With that in mind, we will focus on examples where the code was modified in ways that are unrelated to unlocking performance or any reasonable optimization. These changes do not improve execution speed or stability. They appear to serve only one purpose: to make the stolen code harder to recognize.

Meaningless Changes (Obfuscations)

We pressed hard for clarity on how the Seagate U5 was figured out, because as far as we know, there is no public documentation or tool that covers key recovery for it.

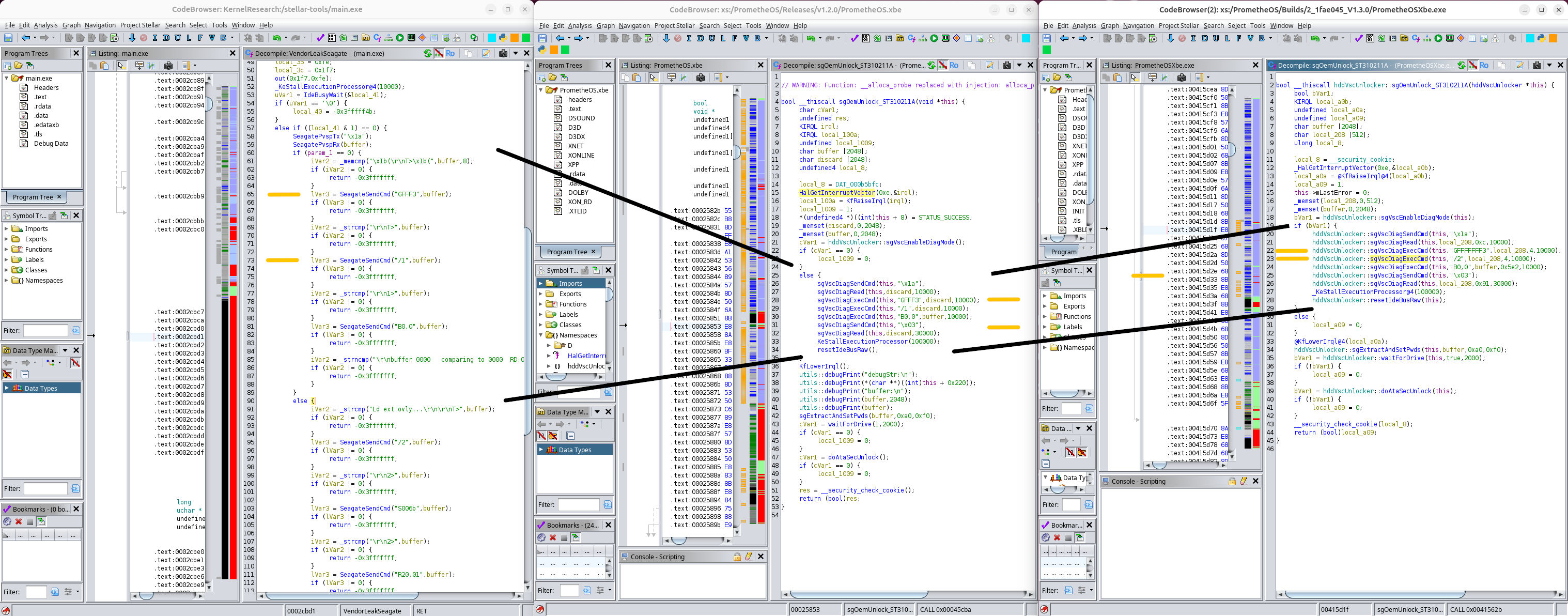

In comparing the 1.2.0 and 1.3.0 versions of PrometheOS, two changes stood out:

sgVscDiagExecCmd(..., "GFFF3") was changed to sgVscDiagExecCmd(..., "GFFFFFFF3") sgVscDiagExecCmd(..., "/1") was changed to sgVscDiagExecCmd(..., "/2")

These changes have no meaningful impact. In fact, the first one arguably makes things worse.

The value GFFF3 instructs the hard drive controller to begin code execution at 0xFFF3. Extending it to GFFFFFFF3 results in the same truncated address due to the controller’s address space, but it adds unnecessary characters that make the command slower to transmit and process.

The change from /1 to /2 just switches diagnostic input modes, but neither option has an effect on the controller’s behavior in this flow.

These are not optimizations. They are changes that serve no functional purpose and appear to exist only to obscure the original source of the code.

Conclusion

At this point, I’ve said everything I need to. The concerns have been laid out clearly, and the patterns speak for themselves. Unless something meaningfully changes or new information comes to light, this will be my final word on the matter.

---
